NexDiag NexPTG Professional - Paint Thickness Gauge (up to 2500 μm)

NexPTG Professional

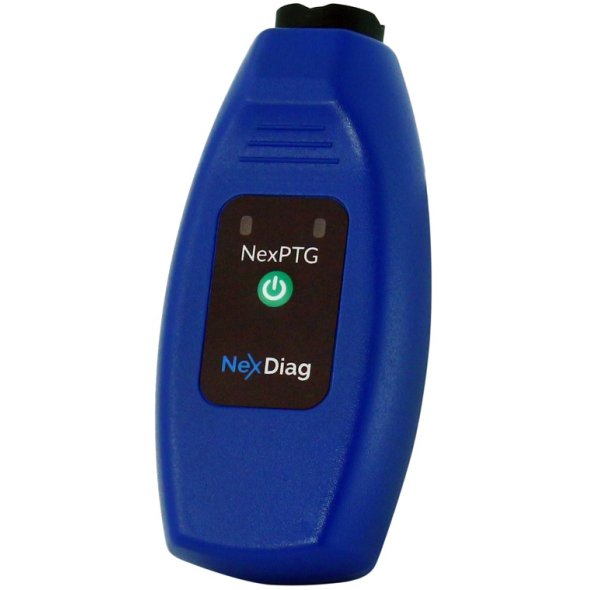

NexPTG Professional is the highest version of the paint thickness gauge, allowing fast, accurate, and intuitive vehicle testing. The Professional version is equipped with a movable head, which enables precise measurements on concave and convex elements. This feature makes it possible to obtain very accurate paint thickness data on various shaped car surfaces.

NexPTG devices are known as the most innovative wireless thickness gauges on the market. NexPTG Professional performs 10 measurements per second and is capable of automatically recognizing and testing paint coatings on steel, galvanized steel, and aluminum.

Special mobile application

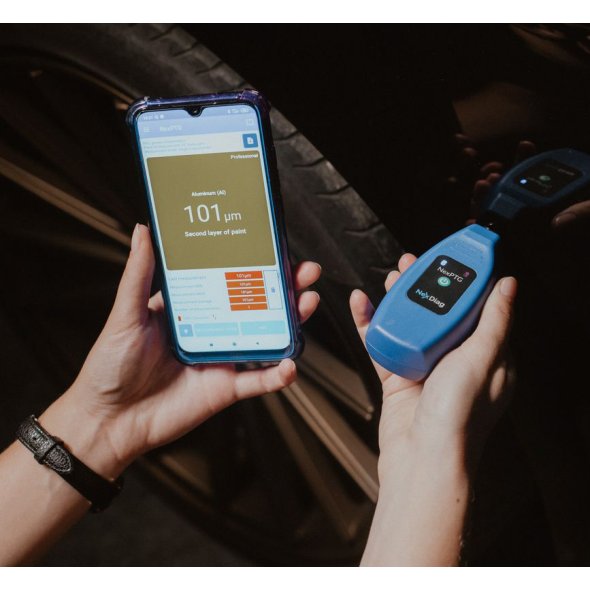

NexPTG Professional is accompanied by a special application that can be installed on any mobile device equipped with iOS or Android. The application allows for examining the paint coating with unprecedented accuracy and precision. Users can analyze the paint on the entire vehicle in real-time, and the application helps interpret measurement results.

Innovative measurement capabilities

NexPTG Professional offers advanced measurement capabilities that allow efficient testing on curved surfaces. By connecting to a phone, the user gains immense possibilities that are unattainable for traditional gauges. The gauge offers advanced features, including recommended measurement points, a buyer's guide, the ability to create reports, and export measurement history.

Technical specifications:

• Measurement range: 0 – 2500 μm (0 – 98.43 mils)
• Measurement resolution: 1 μm
• Probe type / probe end: movable / spherical
• Probe casing: profiled
• Measurement memory: up to 4000 measurements
• Surface recognition: steel, galvanized steel, aluminum
• Paint coating analysis system – SAPL: Extended
• Multilingual menu: yes, including Czech
• Number of measurements per second: 10
• Standby time on alkaline batteries: approx. 100 hrs.
• Operating temperature: -20 to + 40 °C
• Unit settings: μm or mils
• Communication with smart device via Bluetooth 4.0 LE
• Application freely available including free updates
• Supported operating systems: Android, iOS
• Supported batteries: 2x AA
• Testing modes: Continuous, single
• Ability to test against a reference point
• Measurement statistics
• Measurement results curves
• Recommended measurement points
• Report creation
• Export reports and measurement results to email
• API communication
• Expandable with new features
• Automatic device shutdown during inactivity
• Device dimensions: 108 x 50 x 28 mm

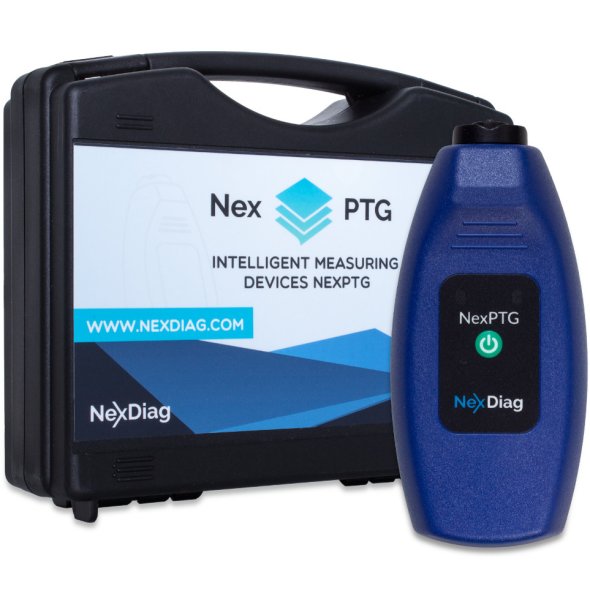

Package contains:

• NexPTG Professional paint thickness gauge
• Calibration kit
• User manual
• Set of alkaline batteries
• Toolcase
